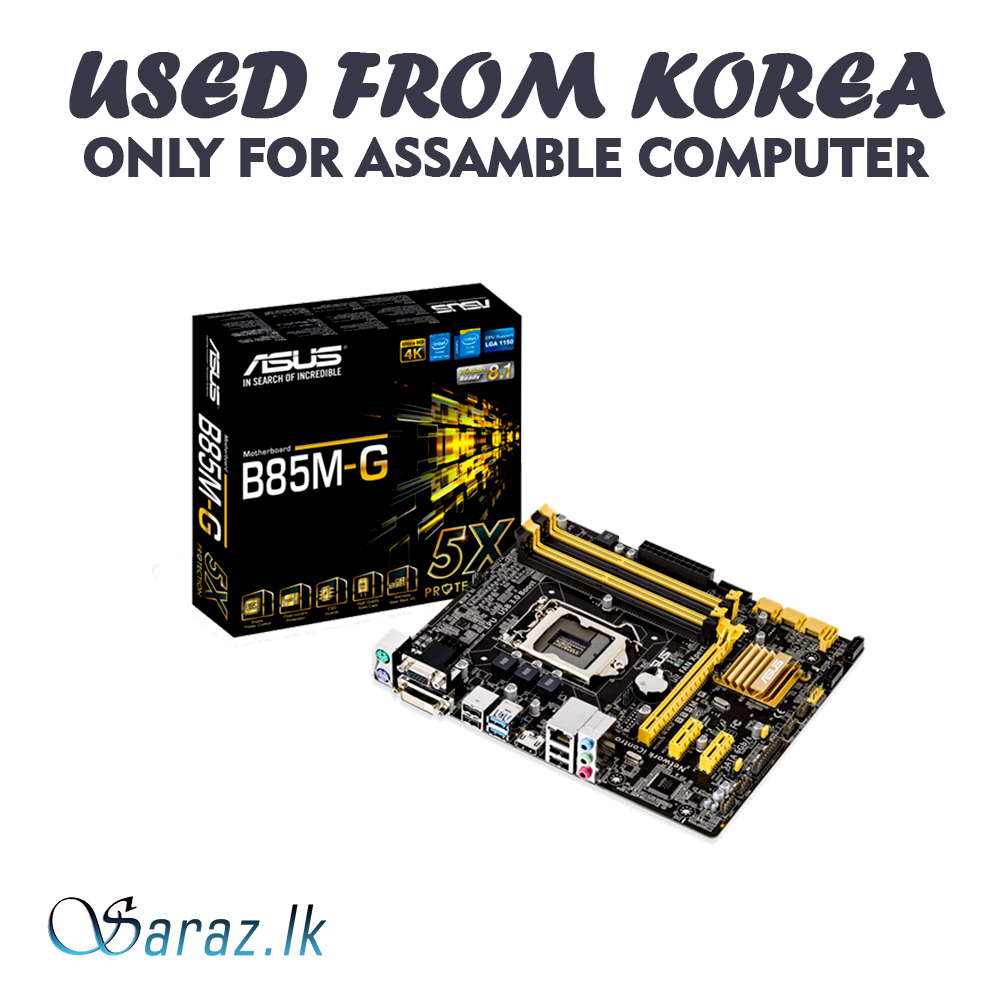

USED B85 MOTHERBOAD

0
0 Reviews 0 Orders 0 Wish
Rs 9,500.00 Rs 9,900.00
Discount :
Tax :
Quantity:
Total price:

  • A-Style

    - Home Cloud

  • CPU

    - Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
    - Digi Power Design
    - 4 Power Phase Design
    - Supports Intel® Turbo Boost 2.0 Technology

  • Chipset

    - Intel® B85
    - Supports Intel® Small Business Advantage 2.0

  • Memory

    - Dual Channel DDR3/DDR3L memory technology
    - 4 x DDR3/DDR3L DIMM slots
    - Supports DDR3/DDR3L 1600/1333/1066 non-ECC, un-buffered memory
    - Max. capacity of system memory: 32GB*
    - Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2


    *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

  • BIOS

    - 64Mb AMI UEFI Legal BIOS with Multilingual GUI support
    - ACPI 1.1 Compliance Wake Up Events
    - SMBIOS 2.3.1 Support
    - CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment

  • Graphics

    - Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600
    - Pixel Shader 5.0, DirectX 11.1
    - Max. shared memory 512MB*
    - Three graphics output options: D-Sub, DVI-D and HDMI
    - Supports Triple Monitor
    - Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz
    - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
    - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
    - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
    - Supports HDCP function with DVI-D and HDMI ports
    - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI ports


    *The size of maximum shared memory may vary from different operating systems.

    **Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

    ***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit.

    ****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.

  • Audio

    - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
    - Premium Blu-ray audio support


    *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

  • LAN

    - Gigabit LAN 10/100/1000 Mb/s
    - Giga PHY Intel® I217V
    - Supports Intel® Remote Wake Technology
    - Supports Wake-On-LAN
    - Supports Energy Efficient Ethernet 802.3az
    - Supports PXE

  • Slots

    - 1 x PCI Express 3.0 x16 slot (PCIE2: x16 mode)
    - 1 x PCI Express 2.0 x16 slot (PCIE4: x4 mode)
    - 2 x PCI Express 2.0 x1 slots
    - 2 x PCI slots
    - Supports AMD Quad CrossFireX™ and CrossFireX™

  • Storage

    - 4 x SATA3 6.0 Gb/s connectors, support NCQ, AHCI and Hot Plug
    - 2 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug

  • Connector

    - 1 x IR header
    - 1 x COM Port header
    - 1 x Power LED header
    - 1 x TPM header
    - 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
    - 2 x Chassis Fan connectors (2 x 4-pin)
    - 1 x Power Fan connector (3-pin)
    - 1 x 24 pin ATX power connector
    - 1 x 8 pin 12V power connector
    - 1 x Front panel audio connector
    - 1 x SPDIF Out connector
    - 2 x USB 2.0 headers (support 4 USB 2.0 ports)
    - 1 x USB 3.1 Gen1 header (support 2 USB 3.1 Gen1 ports)

  • Rear Panel I/O

    I/O Panel
    - 1 x PS/2 Mouse Port
    - 1 x PS/2 Keyboard Port
    - 1 x D-Sub Port
    - 1 x DVI-D Port
    - 1 x HDMI Port
    - 4 x USB 2.0 Ports
    - 2 x USB 3.1 Gen1 Ports
    - 1 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
    - HD Audio Jack: Line in / Front Speaker / Microphone

  • Unique Feature

    - ASRock APP Shop
    - ASRock A-Tuning
    - ASRock Instant Flash
    - ASRock APP Charger
    - ASRock XFast USB
    - ASRock XFast LAN
    - ASRock XFast RAM
    - ASRock Crashless BIOS
    - ASRock OMG (Online Management Guard)
    - ASRock Internet Flash
    - ASRock System Browser
    - ASRock UEFI Tech Service
    - ASRock Dehumidifier
    - ASRock Easy Driver Installer
    - ASRock Interactive UEFI
    - ASRock Fast Boot
    - ASRock Restart to UEFI
    - ASRock On/Off Play Technology
    - ASRock USB Key
    - ASRock FAN-Tastic Tuning
    - Hybrid Booster:

  • Support CD

    - Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar, Start8 (30 days trial), MeshCentral, Splashtop Streamer

  • Accessories

    - Quick Installation Guide, Support CD, I/O Shield
    - 2 x SATA Data Cables

  • Hardware Monitor

    - CPU, Chassis temperature sensing
    - CPU, Chassis, Power Fan Tachometer
    - CPU, Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
    - CPU, Chassis Fan multi-speed control
    - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

  • Form Factor

    - ATX Form Factor
    - All Solid Capacitor design

  • OS

    - Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

  • Certifications

    - FCC, CE
    - ErP/EuP Ready (ErP/EuP ready power supply is required)
