Name / Brand / Architecture
|
| Manufacturer: |
NVIDIA |
| Model: |

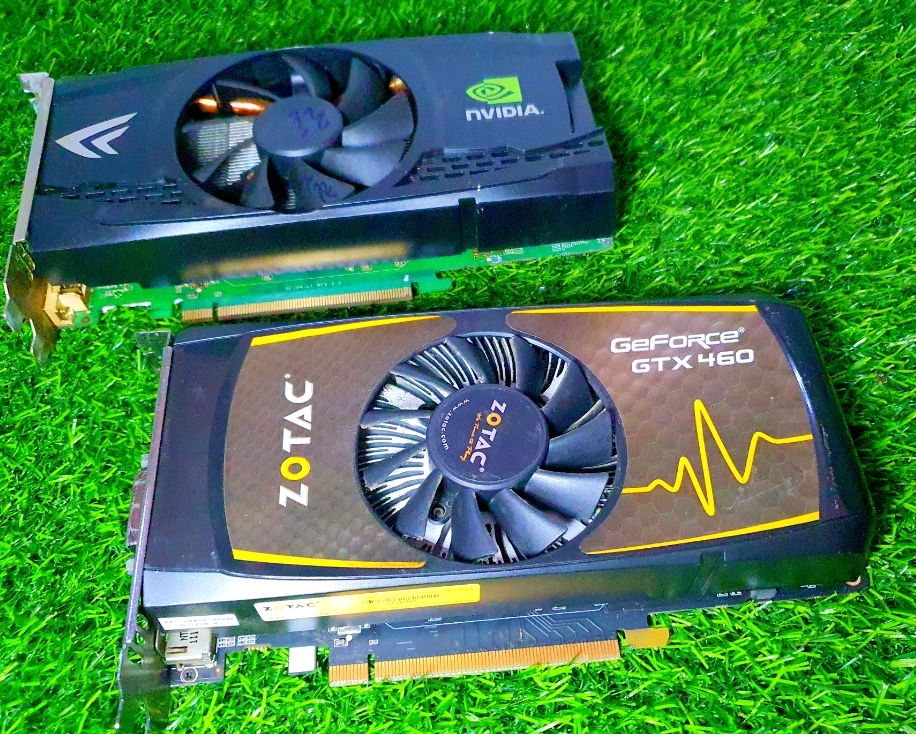

GeForce GTX 460 768MB |
| Reference card?: |
Yes |
| Target market segment: |
Desktop |
| Die name: |
GF104 |
| Architecture: |
Fermi |
| Fabrication process: |
40 nm |
| Transistors: |
1.95 billion |
| Bus interface: |
PCI-E 2.0 x 16 |
| Launch date: |
July 2010 |
Frequency
|
| Graphics clock: |
675 MHz |
| Processor clock: |
1350 MHz |
Memory specifications
|
| Memory size: |
768 MB |
| Memory type: |
GDDR5 |
| Memory clock: |
900 MHz |
| Memory clock (effective): |
3600 MHz |
| Memory interface width: |
192-bit |
| Memory bandwidth: |
86.4 GB/s |
Cores / Texture
|
| CUDA: |
2.1 |
| CUDA cores: |
336 |
| ROPs: |
24 |
| Texture units: |
56 |
| RAMDACs: |
400 MHz |
SLI / Crossfire
|
| Maximum SLI options: |
2-Way |
Electric characteristics
|
| Maximum GPU temp: |
104°C |
| Maximum power draw: |
160 W |
Video features
|
| Multi-monitor: |
Up to 3 displays |
| Maximum DVI resolution: |
2560 x 1600 |
| Maximum HDMI resolution: |
1920 x 1200 |
| Maximum VGA resolution: |
2048 x 1536 |
| Anti-Aliasing technologies: |
32 x CSAA |
| HDMI: |
Yes |
| HDMI version: |
1.3a |
Performance
|
| Pixel fill rate: |
16.2 Gigapixels/s |
| Texture fill rate: |
37.8 Gigatexels/s |
| Single presision compute power: |
907.2 GFLOPS |
External connectors
|

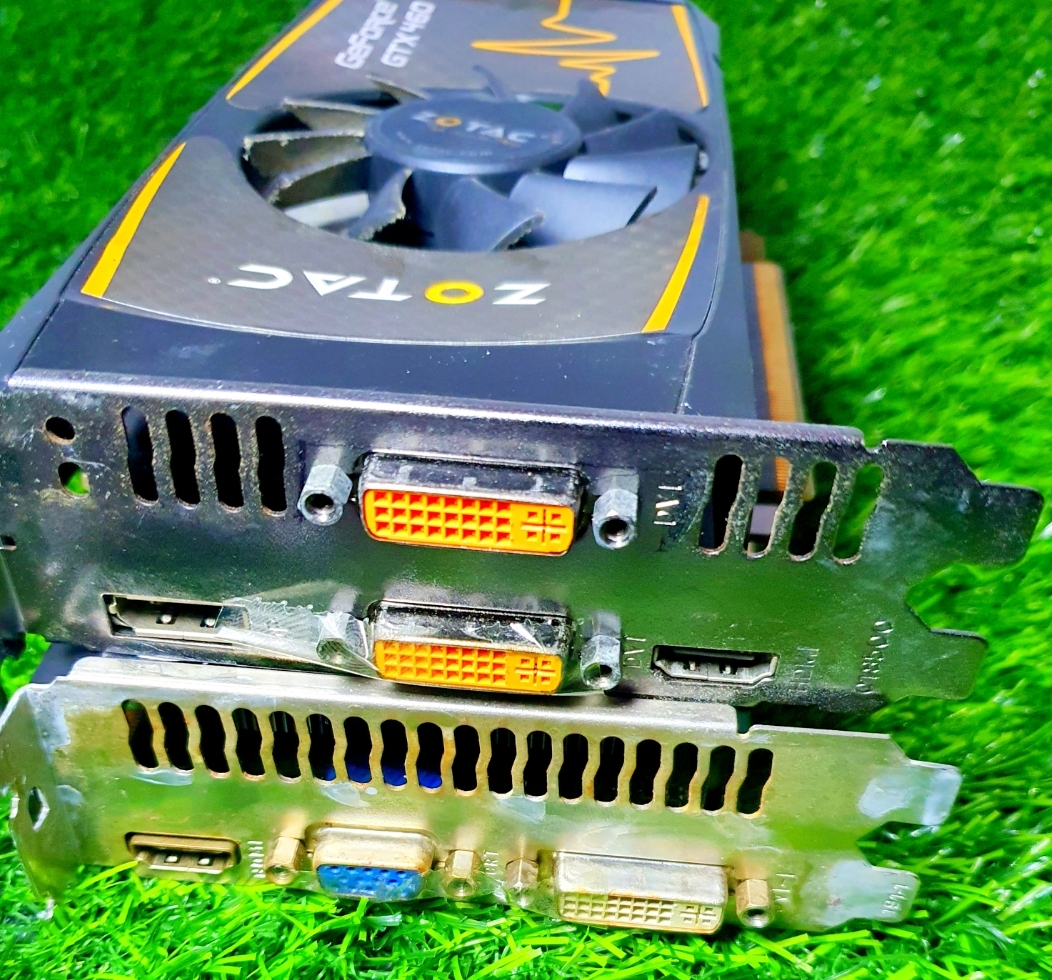

| Standard display connectors: |
2 x Dual Link DVI-I
Mini HDMI |
| Power connectors: |
2 x 6-Pin |
| Audio input for HDMI: |
Internal |
Dimensions
|
| Size (length x height): |
8.25 inches (210 mm) x 4.376 inches (111 mm) |
| Width: |
Dual-Slot |
Other features / Support
|
| Other features: |
3D Vision ?
3D Vision Surround ?
HDCP
PhysX
PureVideo HD ? |
| Open CL support: |
Yes |
| OpenGL support: |
4.0 |
| DirectX support: |
11.0 |
| Shader model: |
5.0 |
